Universal Transducer Adapters for Biomedical Research
UTAs can be changed in a few minutes – no tools required
Verasonics’ Universal Transducer Adapter (UTA) enables Vantage NXT ® System users to quickly convert the system to operate transducers with a variety of connectors. Changing from one UTA to another takes only a few minutes – users loosens a set of screws by hand, changes the UTA and re-tightens the screws. The Vantage NXT system must be shut down before, and re-booted after, the UTA changeover.
One UTA adapter is included with every Vantage NXT System purchase. Additional adapters are available to meet changing research needs; older Vantage systems can be upgraded to the latest UTA technology as many UTAs are compatible across both Vantage platforms.
Key Benefits of the UTA:
| NXT UTA 260-S | O | O | ✓ | ✓ | O |
| NXT UTA 260-D | O | O | ✓ (64 channels only / each connector) | ✓ (64 channels only / each connector) | ✓ (128 channels only) |
| NXT UTA 260-MUX | ✓ | ✓ | O (64 channels only) | O (64 channels only) | O (64 channels only) |
| NXT UTA 408-GE | X | X | ✓ (128 channels only) | ✓ (128 channels only) | ✓ |
| NXT UTA 64 LEMO | O | ✓ | O (64 channels only) | O (64 channels only) | O (64 channels only) |
| NXT UTA 128 LEMO | O | O | O | ✓ | ✓ (128 channels only) |
| NXT UTA 256 Direct | O (64 channels only) | O (64 channels only) | ✓ (128 channels only) | ✓ (128 channels only) | ✓ |
| NXT UTA 1024-MUX | X | X | X | X | ✓ |
✓ Indicates the UTA is supported and is tested for imaging performance
O Indicates the UTA is recognized by the system
X Indicates the UTA is not supported by the system
** Future availability, NXT adapter compatibility with Vantage NXT 32LE and 64 subject to change.
NXT UTA 260-S
The UTA 260-S is compatible with Verasonics-labeled transducers and ATL HDI Transducers, including 192 and 256-element probes with high voltage multiplexers.
NXT UTA 260-D
The UTA 260-D adapters is compatible with Verasonics-labeled transducers and ATL HDI Transducers, including 192 and 256-element probes with high voltage multiplexers.
NXT UTA 260-MUX
The UTA 260-MUX supports transducers with up to 128 elements on systems with fewer channels.

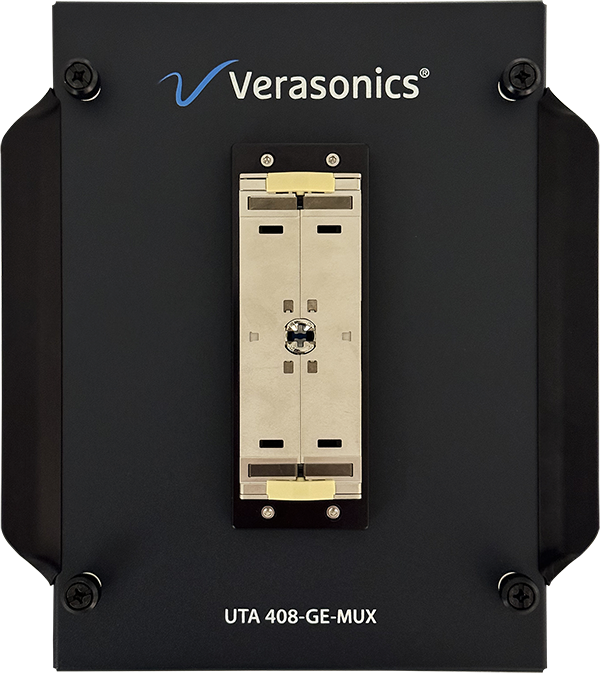

NXT UTA 408-GE
The UTA 408-GE supports Verasonics transducers, select GE Healthcare1 transducers and custom transducers using the GE-408-pin backshell kit.
NXT UTA 408-GE
The UTA 408-GE supports Verasonics transducers, select GE Healthcare1 transducers and custom transducers using the GE-408-pin backshell kit.
NXT UTA 256 Direct
The UTA 256 Direct provides direct connections for custom and specialty transducers with up to 256 elements without the use of a multiplexer.
NXT UTA 64 LEMO
The UTA 64 LEMO adapter provides 64 or 128 LEMO series 00 connectors for single element transducers.
NXT UTA 128 LEMO
The UTA 128 LEMO adapter provides 64 or 128 LEMO series 00 connectors for single element transducers.
1GE Healthcare is a registered trademark owned by GE Healthcare Technologies Inc.
