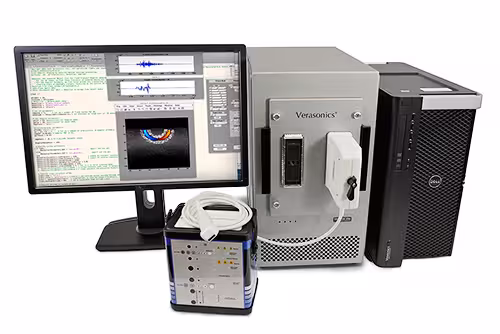

The Vantage 256 system with host controller and high frequency transducer

Please note: Please visit the End-of-Life Table on our Customer Support page for additional information.

Complete control over all transmit parameters

RF data immediately available in computer memory from all channels while imaging

Super-fast acquisition capability to perform functional brain imaging and other high frame rate applications

• • • Data acquisition – up to 100,000 fps
    • Data transfer – sustained 6.6 GB/sec

Use 14-Bit ADCs for excellent dynamic range

Optional trigger inputs and output for synchronizing with other devices

Transmit, acquire data, and process images using focused ray lines, wide beam and/or plane wave sequences

Volume Imaging with matrix array transducers

HIFU configurations available for Focused Ultrasound Research

Long-duration pulses with Extended Transmit option for ARFI, Shearwave Elastography

Ability to modify the receive signal processing and image processing parameters

Easy incorporation of custom algorithms

All transmit and receive channels are independently controlled

Standard frequency range: 0.5 MHz to 20 MHz

Low Frequency range: 50 kHz – 1.5 MHz

Time delay resolution: 4.0 nsec.

Tri-state drive: + high voltage, – high voltage and ground

Per-channel, programmable center frequency, pulse width (pulse duty cycle), pulse length, polarity, and delay

Per-channel transmit apodization using pulse width modulation

Power limit, single channel: up to 100 Watts peak, 8 Watts average (into 50 Ohms)

Extended Transmit option: Enables pulses up to a few milliseconds in duration (for radiation force methods and for long coded excitation pulses)

Arbitrary Waveform: Per-channel programming of tri-state transition timing on a 4 ns grid

Real-time access to RF data for each channel

Standard frequency range: 0.5 – 27 MHz (up to 50 MHz with filter adjustment)

Low Frequency range: 50 kHz – 1.5 MHz

Programmable anti-aliasing filter cutoff: 10, 15, 20, and 30 MHz, and in addition, 35 and 50 MHz with High Frequency configuration

14-bit A/D converters with programmable sample rate up to 62.5 MHz

Two independent, user-programmable, symmetrical RF data digital filters (23 tap and 41 tap)

Sequence programming performed in the MATLAB environment

Multiple software toolboxes to facilitate programming and system optimization

Easy integration with custom transducers of virtually any configuration and geometry

Extensive documentation

Access to highly experienced scientists and engineers for technical questions and a timely response

Product training available for all customers in the Verasonics Community

The Vantage Platform is available in five models with a variety of configurations and options:

✓  purchasable configuration or option.
The High Frequency configuration of Vantage Systems is no longer available

✓  purchasable configuration or option.
