Transducer Options

Vantage Systems are designed to support a wide variety of transducer technologies. To facilitate the work of researchers, Verasonics collaborates with the world’s leading transducer manufacturers to offer high-quality transducers for many research applications in the biomedical science and Materials Science arenas. For specific ultrasound transducer development needs beyond our offerings, the Verasonics sales team can facilitate introductions to these our partners.

Options range from a single element transducer to arrays with thousands of elements, from conventional PZT and single crystal technology to leading-edge CMUT, PMUT and other MEMS technologies. They include standard linear, curved, and phased arrays, novel concave arrays, matrix and Row Column arrays, ring arrays and even catheter-based arrays. From pulse-echo to pitch-catch to passive monitoring and receive-only arrangements, the Vantage platform is uniquely capable of enabling an ever-expanding variety of research applications.

Click on the images below to learn more about each transducer option.

Options

Partner

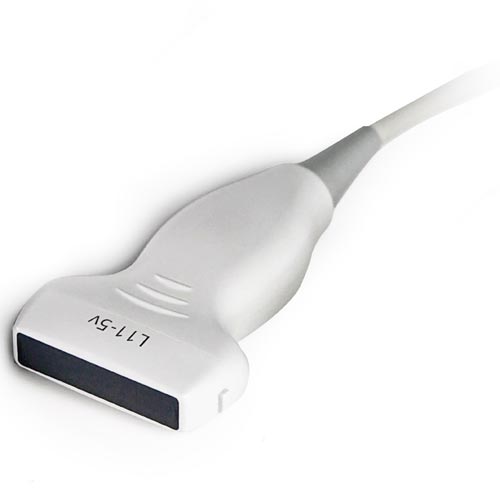

Standard medical imaging* transducers, including linear array, curved array and phased array probes, with frequencies ranging from 2 MHz up to 11 MHz. Compatible with the following adapters: UTA 260-D, UTA 260-S, UTA 260-MUX.

Verasonics-labeled probes

General imaging transducers*, including linear array, curved array, and phased array probes, with frequencies ranging from 2 MHz to 11 MHz. Compatible with the UTA 408-GE adapter.

Humanscan

High-element count medical imaging* transducers, including linear, curved, phased and endo-cavitary arrays, with frequencies ranging from 1 MHz up to 12 MHz

GE

GE Probes

Single Crystal High Frequency linear array probes, with 128 elements and frequency bandwidths ranging from 14 MHz up to 35 MHz

Vermon

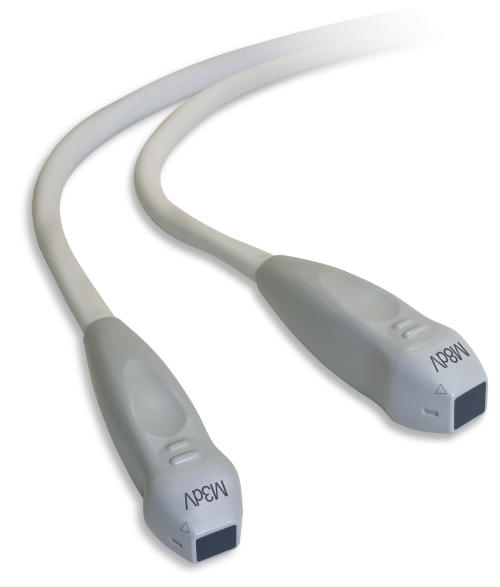

Advanced technologies for Volume Imaging, including Matrix Arrays probes with 1024 elements at 3 MHz and 8 MHz

Vermon

6 MHz Row-Column Array featuring orthogonally oriented arrays of 128 elements each, suitable for high frame rate volume imaging

Vermon

15 MHz Row-Column Array featuring orthogonally oriented arrays of 80 elements each, suitable for high frame rate capture for 3D and volume imaging applications. Compatible with the UTA 408-GE adapter.

Vermon

Phased array transducers at 5 MHz especially developed for Materials Science & NDE

Imasonic

Imasonic Probes

CMUT High Frequency linear array probes, with 256 elements and frequency bandwidths ranging from 8 MHz up to 38 MHz

KOLO

Kolo-CMUT-transducers-for-research-ultrasound

High performance transducer pairings for Ultrasound-Guided Focused Ultrasound and HIFU research, from 500 kHz to 2 MHz

Sonic Concepts

*The Vantage System is intended to be used for research and experimental uses only.
The Vantage System is not a diagnostic ultrasound device.
Images shown are for demonstration purposes only.
