NDE/NDT Demonstration – Full Matrix Capture

Full Matrix Capture

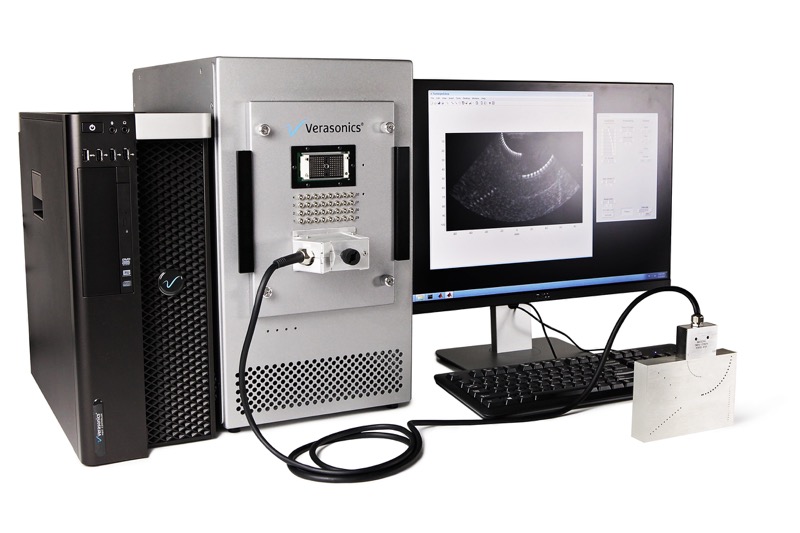

Vantage Research Platform
for Materials Science and NDE/NDT

  • Transmit with one element
  • Receive on all elements
  • Repeat across array to compile a 2D image
  • The speed of Vantage architecture permits Full Matrix Capture in real-time for 128 element phased array

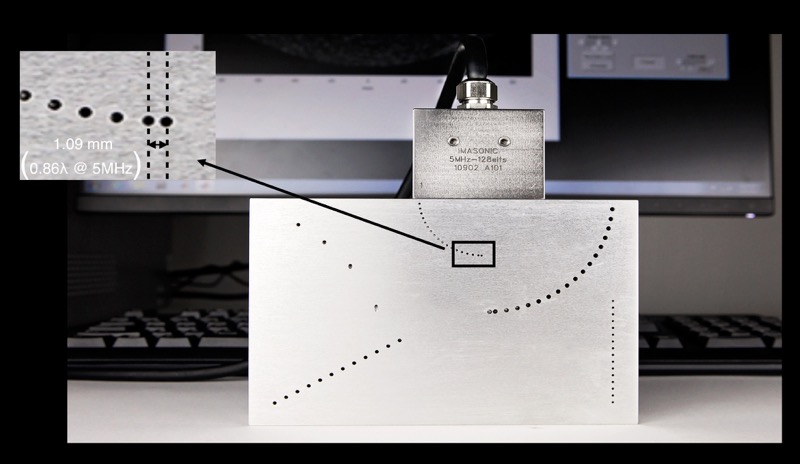

This demonstration uses a 128-element, 5.0 MHz transducer from Imasonic and an aluminum block phantom.  The smallest holes identified in this close-up photo are 1.09 mm apart (0.86λ at 5 MHz).

Full matrix capture research

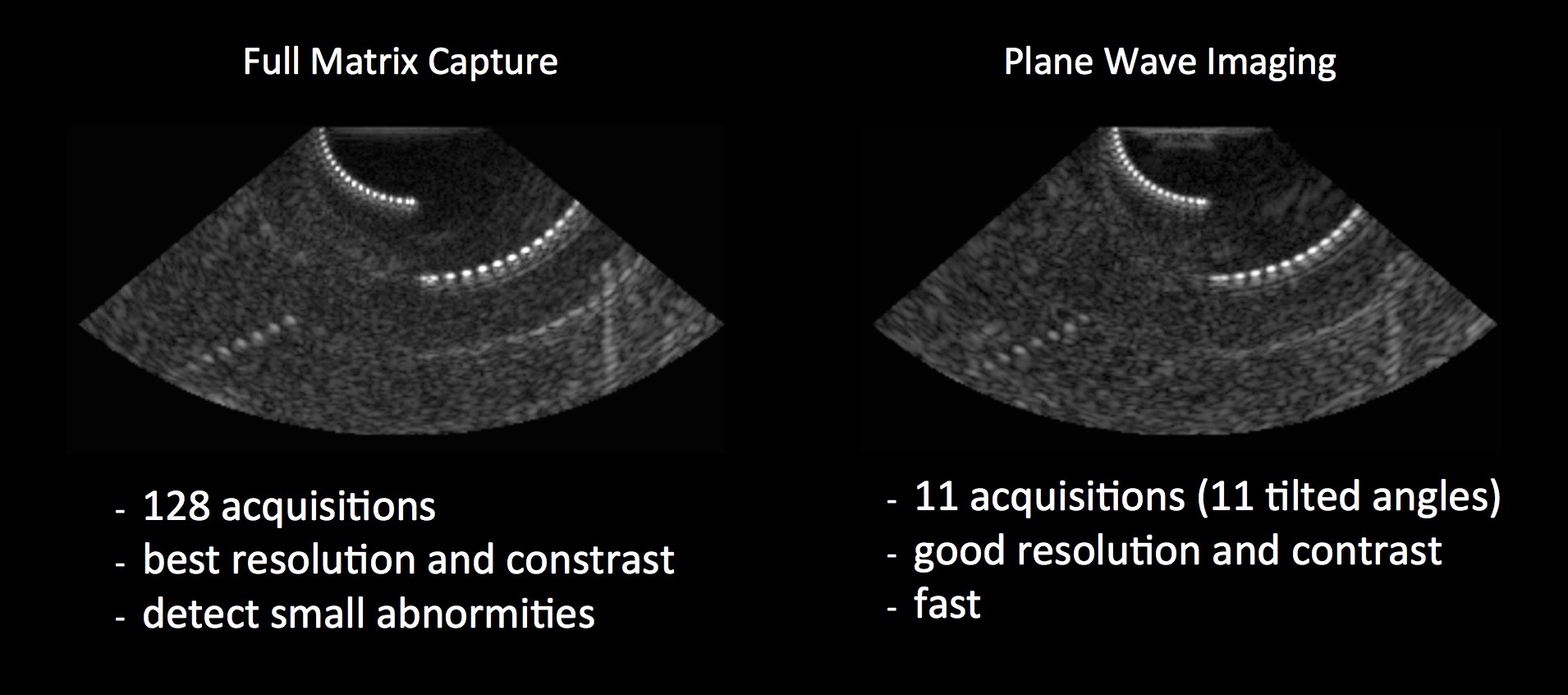

The resulting b-mode images compare Full Matrix Capture to Plane Wave Imaging using the Vantage system Pixel-Oriented Processing image reconstruction software.
