GE Transducers Available for Vantage Systems

High Performance Transducers from General Electric that utilize the DLP-408 connector are compatible with Vantage systems using the UTA 408-GE transducer adapter and are available from Verasonics.

L3-12-D Linear Array

Center Frequency  6.5 MHz
Bandwidth  85%
Number of elements  256
Pitch  0.20 mm
Elevation Focus  22 mm
Elevation Aperture  5.0 mm
MUX  Yes
Compatibility  Vantage 256, 128, 64LE

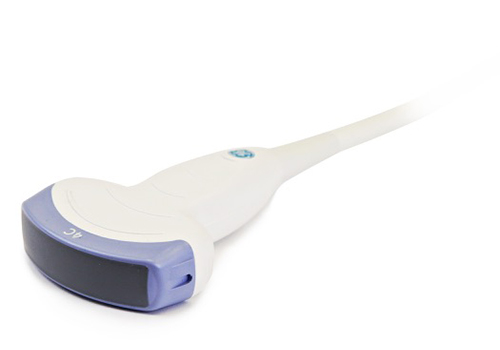

4C-D Curved Linear Array

Center Frequency  3.2 MHz
Bandwidth  70%
Number of elements  128
Pitch  0.478 mm
Elevation Focus  67 mm
Elevation Aperture  13 mm
Radius of Curvature  60.0 mm
Compatibility  Vantage 256, 128, 64LE

M5Sc-D Phased Array

Center Frequency  2.8 MHz
Bandwidth  90%
Number of elements  80 x 3
Pitch  0.27 mm
Elevation Focus  77 mm
Elevation Aperture  13.0 mm
MUX  No
Compatibility  Vantage 256

C1-6-D Curved Linear Array

Center Frequency  3.4 MHz
Bandwidth  95%
Number of elements  192
Pitch  0.35 mm
Elevation Focus  66 mm
Elevation Aperture  11.5 mm
Radius of Curvature  56.8 mm
Compatibility  Vantage 256

IC5-9-D Intracavitary Curved Linear Array

Center Frequency  5.8 MHz
Bandwidth  75%
Number of elements  192
Pitch  0.138 mm
Elevation Focus  35 mm
Elevation Aperture  6.0 mm
Radius of Curvature  10.1
Compatibility  Vantage 256

9L-D

Center Frequency  5.3 MHz
Bandwidth  75%
Number of elements  192
Pitch  0.23 mm
Elevation Focus  28 mm
Elevation Aperture  6.0 mm
Mux  No
Compatibility  Vantage 256
Download the GE Transducers Datasheet
GE Transducers for Vantage Systems
Download the Biomedical UTA Datasheet
biomedical uta data sheet
